rattleCAD 4.0 - Workshop Drawings - FrameJig Settings
What is it for?
This page shows you the settings for different frame jigs allready available in rattleCAD.
Content of this page
- How to get FrameJig settings
- Different Frame Jig settings available in rattleCAD
- ... need a different configuration
How to get FrameJig settings

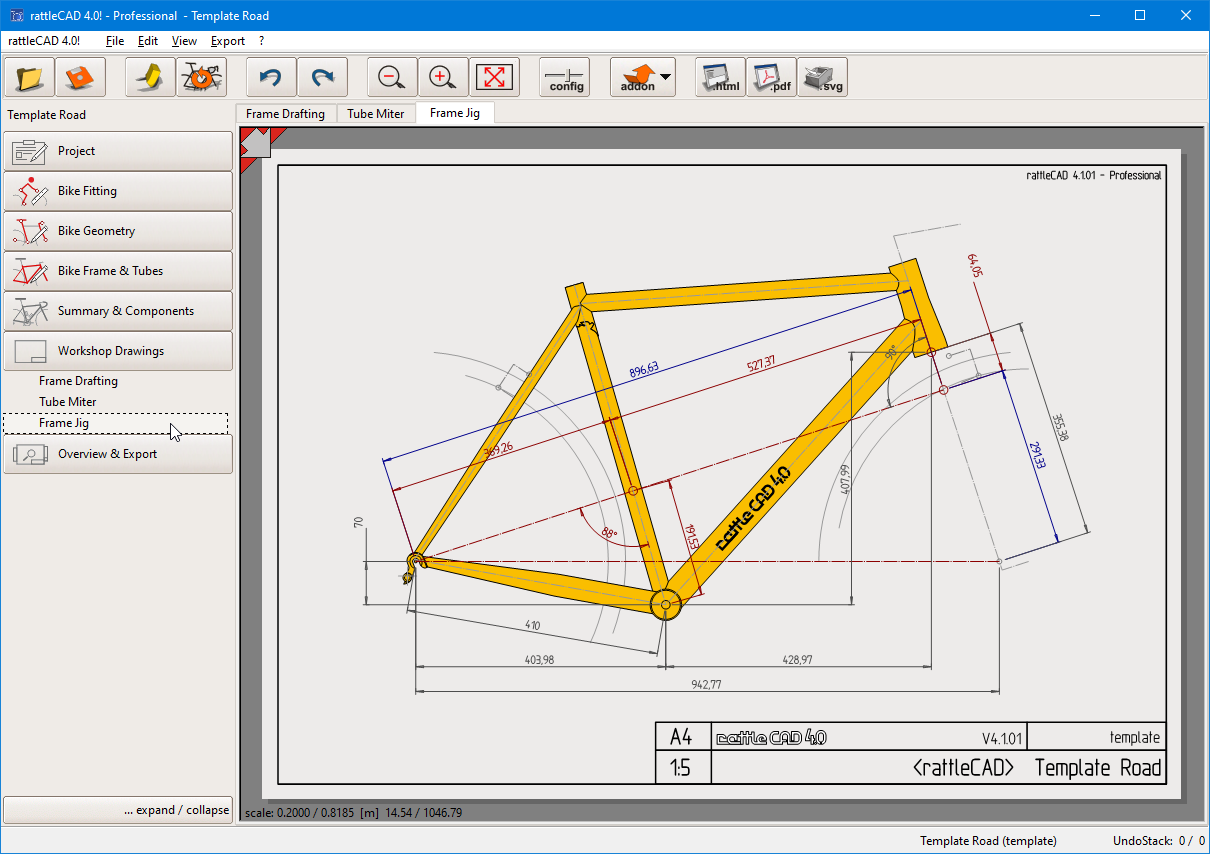

From the leftside Accordion-Menu select:
- Workshop Drawings
- Frame Jig
![frameJig!](images/workshop_FrameJig/frameJig__00__WorkshopDrawing.png)
... to switch between different Frame Jig settingse click the gray/white arrow in the top left corner,
![frameJig!](images/workshop_FrameJig/frameJig__01__FrameJig_Selector.png)
Different Frame Jig settings available in rattleCAD

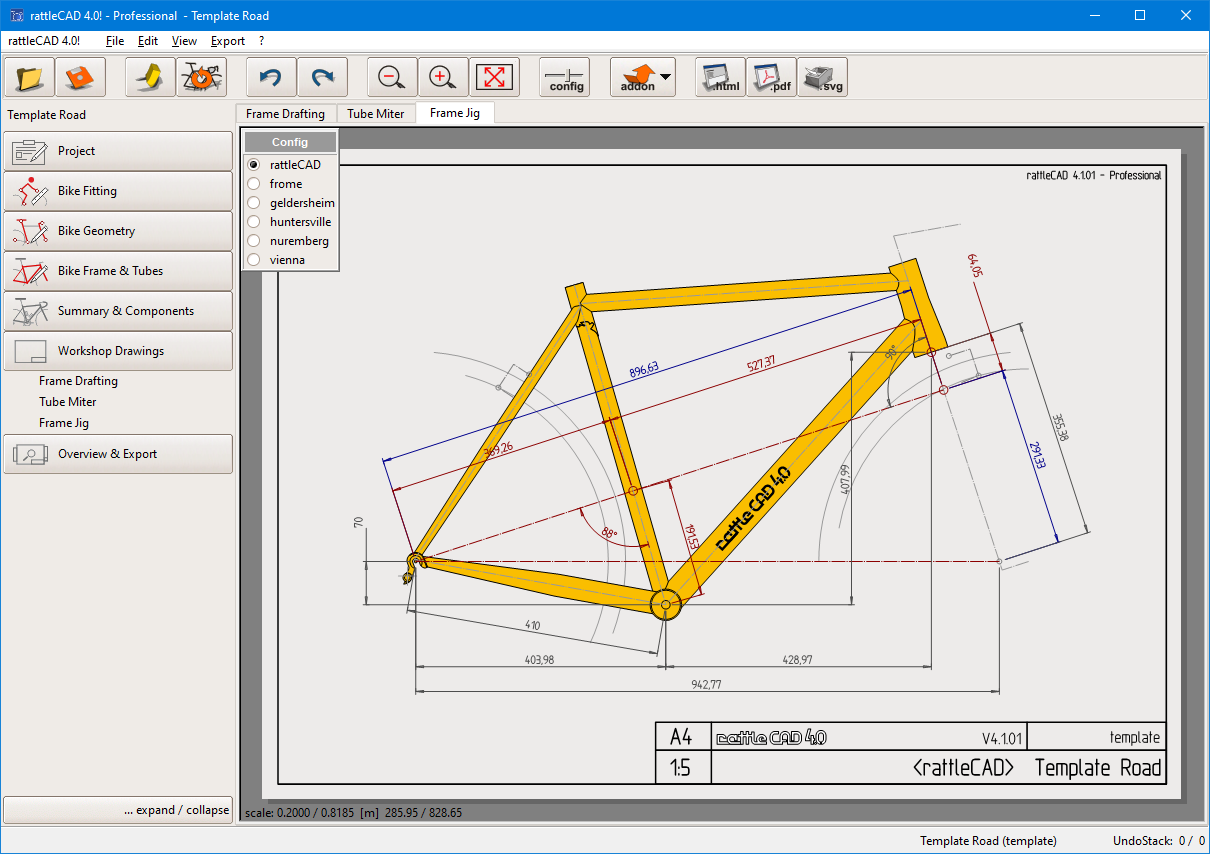

![frameJig!](images/workshop_FrameJig/frameJig__20__rattleCAD.png)

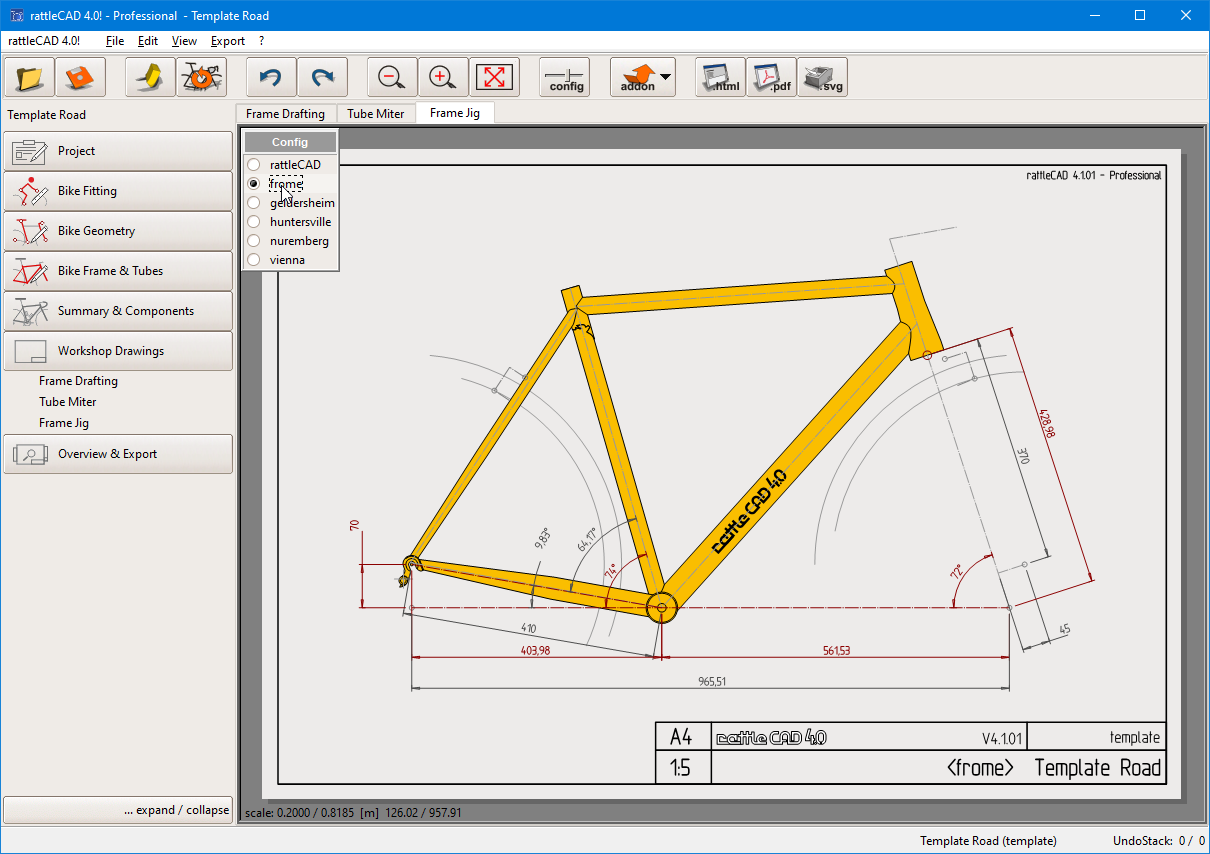

![frameJig!](images/workshop_FrameJig/frameJig__20__frome.png)

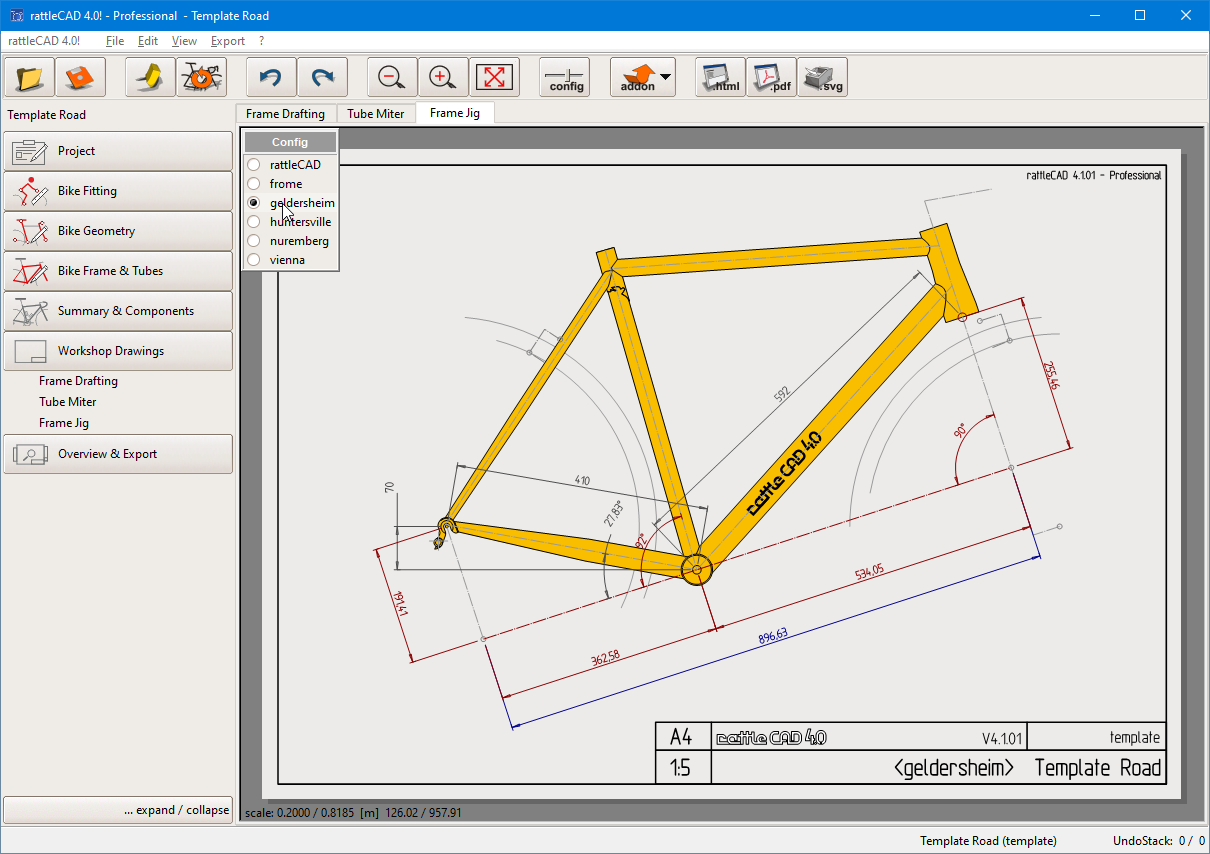

![frameJig!](images/workshop_FrameJig/frameJig__20__geldersheim.png)

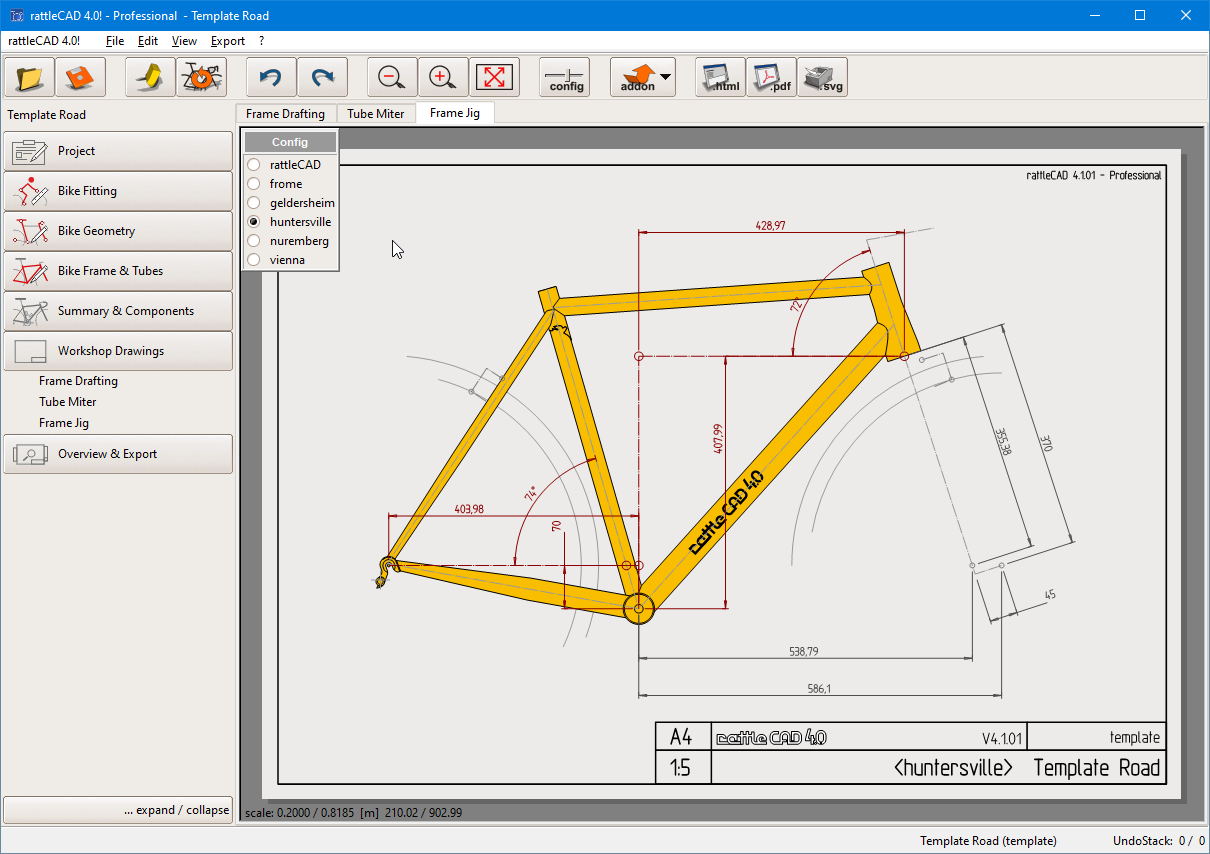

![frameJig!](images/workshop_FrameJig/frameJig__20__huntersville.png)
![frameJig!](images/workshop_FrameJig/frameJig__20__nuremberg.png)

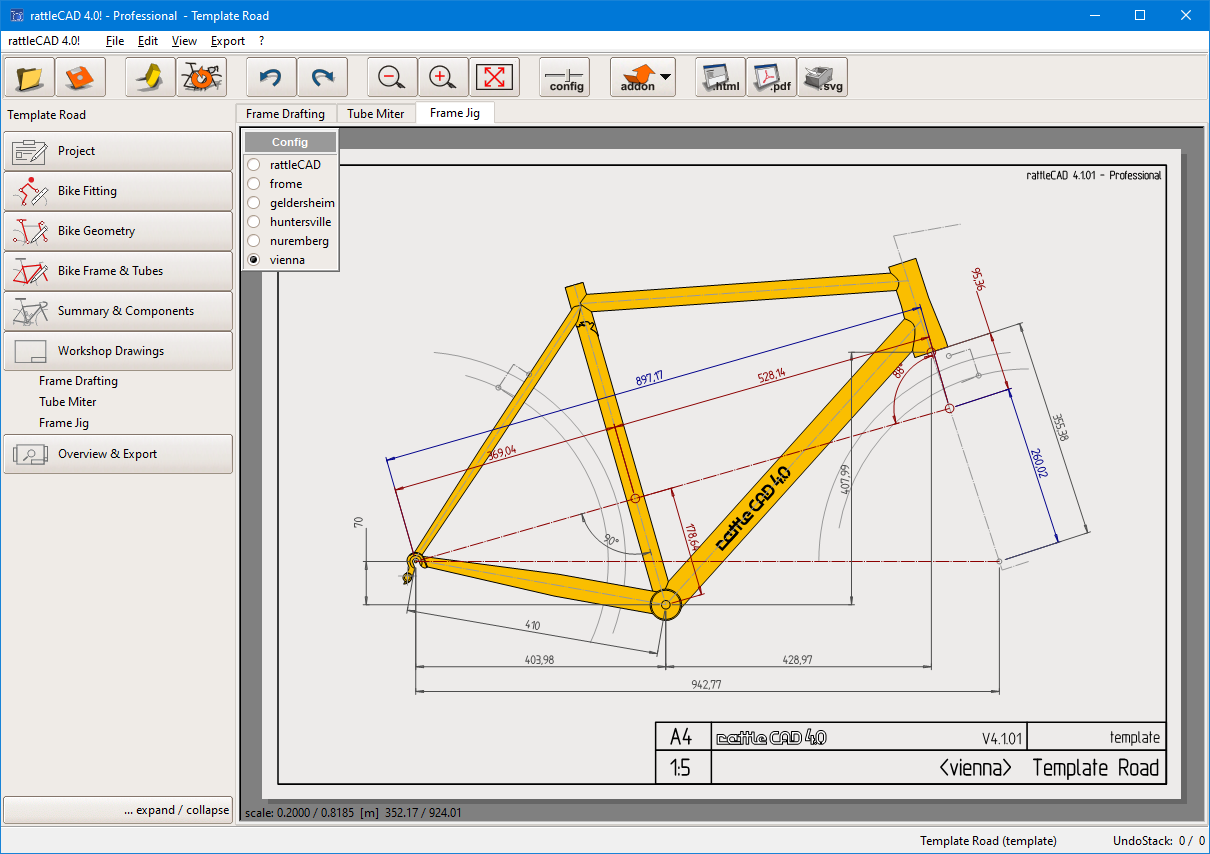

![frameJig!](images/workshop_FrameJig/frameJig__20__vienna.png)
... need a different configuration
In the case that the allready supported configurations do not fit your requirements, feel free to contact me.
